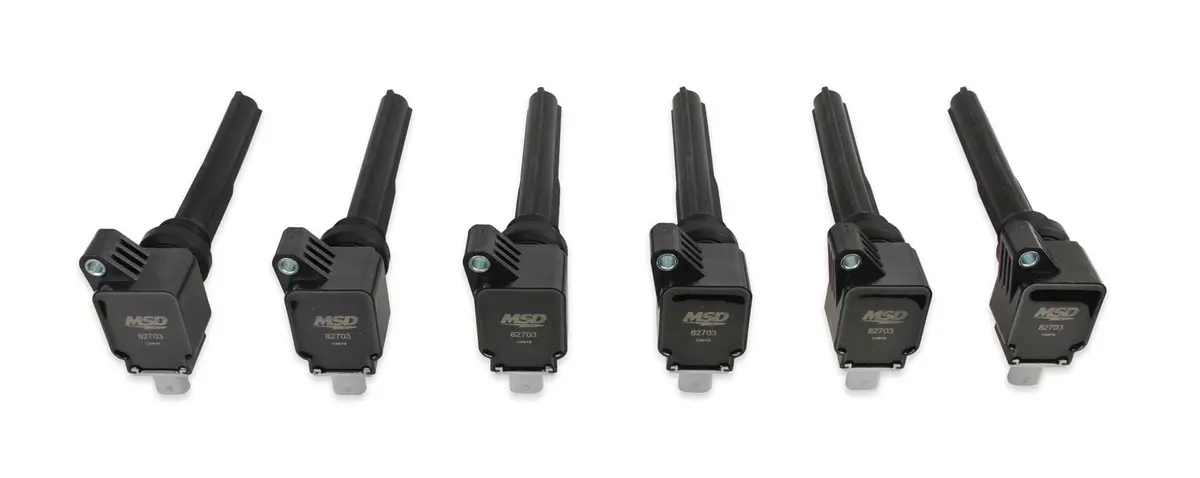

Description
Brand: MSD Ignition
Manufacturer’s Part Number: 827063
Part Type: Ignition Coils
Product Line: MSD Direct Replacement Ignition Coil Packs
Automotive Fittings Part Number: MSD-827063
UPC: 090127070338
Coil Style: Coil pack
Primary Resistance: 0.500 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 46,000 V
Turns Ratio: 101:1
Secondary Resistance: 6.20K ohms
Inductance: 1.70 mH
Peak Current: 108 mA
Spark Duration: 2,300 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold as a set of 6.
Description:
When it comes to late model performance parts, nothing beats bolt-on and direct connection components–especially when they improve performance like these MSD direct replacement ignition coil packs. They are designed with improved materials and windings to produce a stronger spark. This improved spark helps burn the fuel mixture more efficiently, resulting in smooth idle and improved midrange rpm power.
