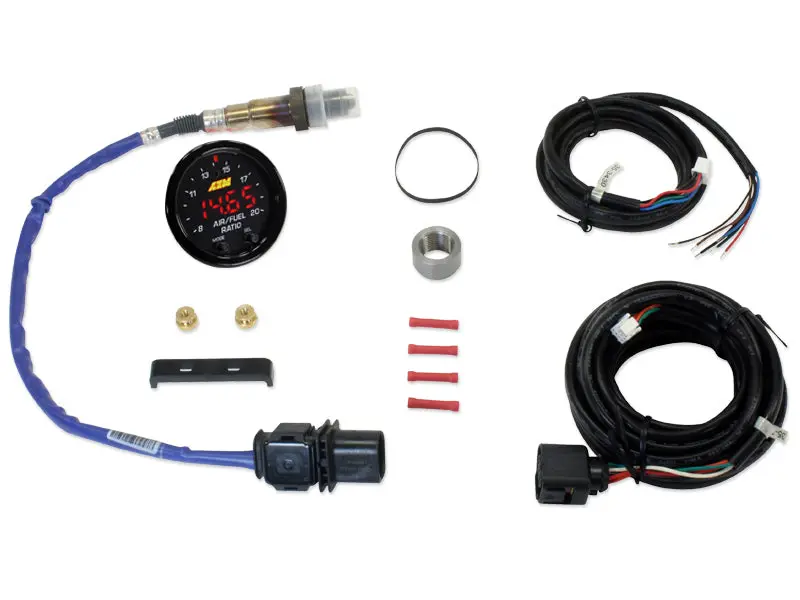

AEM X-Series Universal Wideband O2 Controller Featuring Digital AFR Gauge

Description

The Fastest Responding Wideband With Patented X-Digital Technology (Patent 9,575,030)

X-SERIES WIDEBAND UEGO CONTROLLER FEATURES:

• X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
• Includes Bosch 4.9LSU wideband UEGO sensor
• Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
• Compatible with vehicle/system voltages up to 16V
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
• Can display AFR values in hundredths of %
• 52mm gauge diameter and slim 0.825 gauge depth
• Gauge cup depth only .200 deep!
• Auto dimming feature
• User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
• Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
• Locking connectors

AFR VALUE RANGE BY FUEL TYPES:

• Display Gasoline values from 8.0:1 to 20.0:1 AFR
• Display Lambda values from .55 to 2.00
• 0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR
• CANbus Output Gasoline values from 8.0:1 to 20.0:1 AFR
• CANbus Output Lambda values from .55 to 2.00
• 0-5V Output Lambda values from .58 to 1.23
• 0-5V Output E85 values from 5.7:1 to 12.0:1 AFR
• 0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR
• 0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR

More information: http://www.aemelectronics.com/?q=products/gauges/digital-gauges/x-series-wideband-uego-afr-sensor-controller-gauge
